Up to 6 battery packs
Free of external pack-to-pack wiring
One person-handling
Multichannel PV input
PV
Jet Amps
RS485
CT
Grid
Load

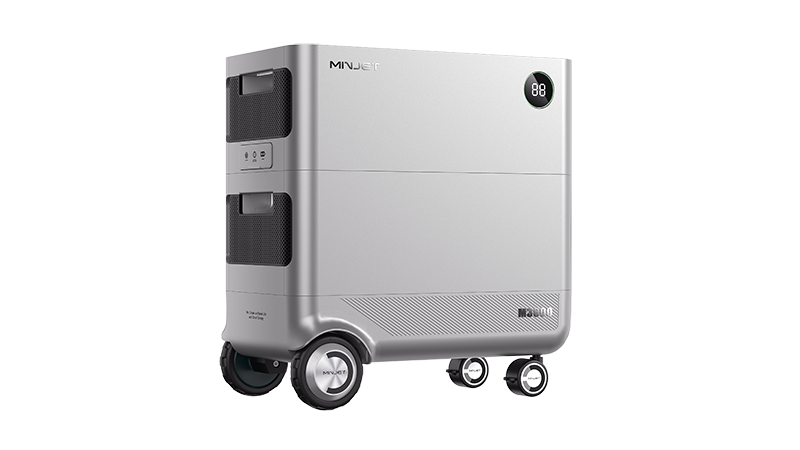

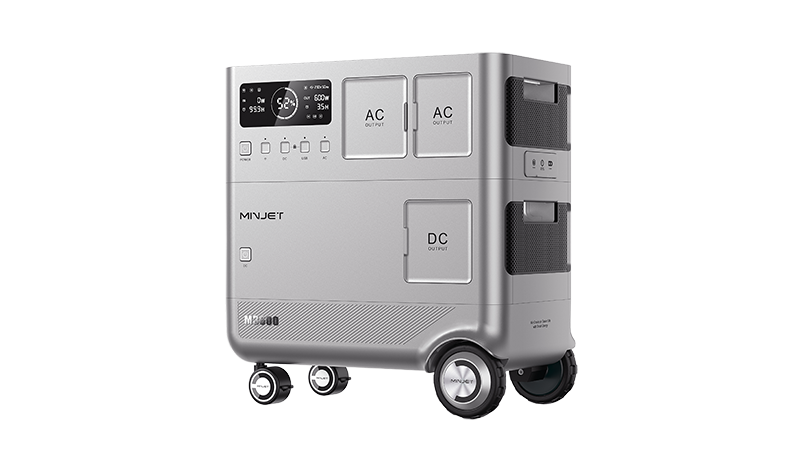

| Model | MM3600A | |
| Energy | 2048wH/module, up to 6 modules in parallel | |
| Cycle life | 4000 cycles | |
| AC Off-grid output | 3600W max, 220V/230V240V 50Hz/60Hz±0.1% | |
| AC On-grid output | 3600W max, 220V/230V240V 50Hz/60Hz±0.1% | |
| AC input | 170V-280V, 46-64Hz | |
| DC output | Main module: Car Socket: 12V/10A 5521(x2)12V/5A each port, Total 120W | Each battery module: ANDSON: 12v |
| USB Output | Main module: PD3.1(x2): each port 140W, two ports share 140W |
Each battery module: PD3.0(x2): each port 100W, Total 200W max USB(x2): each port 18W,Total 10W max |
| APP Control | Bluetooth & Wi-Fi | |
| Dimension | Main module:550*300*200 mm | Each battery module: 500*300*200 mm |
| Weight | Main module:15kg | Each battery module:24.5kg |
| Certification and Testing | IEC 62619, IEC63056, IEC60730-1 Annex H, EN61000-6-1/-3, IEC/EN62109-1/-2, IEC/EN62477-1, EN 300 328, EN 301 489-1\EN 301 489-17, UN38.3 | |
